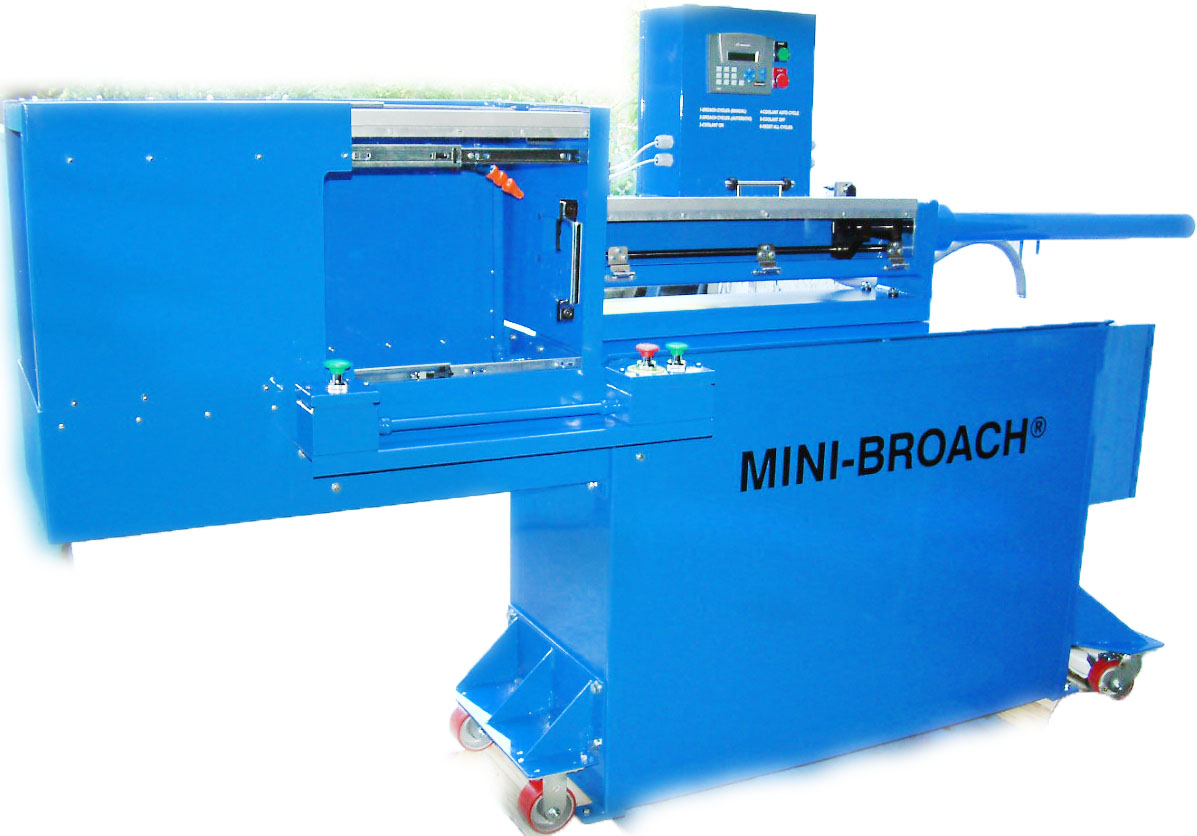

Model A Machine

Specifications:

• Stroke 0-28"
• 2 Ton pull force, 2.5 ton max pull force
• Main Motor:5 H.P., 230/460V. 60Hz, 3-phase
• Coolant motor:230/460V. 60Hz, 3-phase
• Manual and semi-automatic control
• 2 Button anti tie down cycling
• PLC Controlled
• Pressure compensated hydraulics
• 3 Point guiding system
• Front and rear adjustable stroke limit switches
• Variable broaching speeds(0-27 FPM)
• Return speed 20 FPM fixed
• Optional equipment:
• 18" Mini-safe light curtain

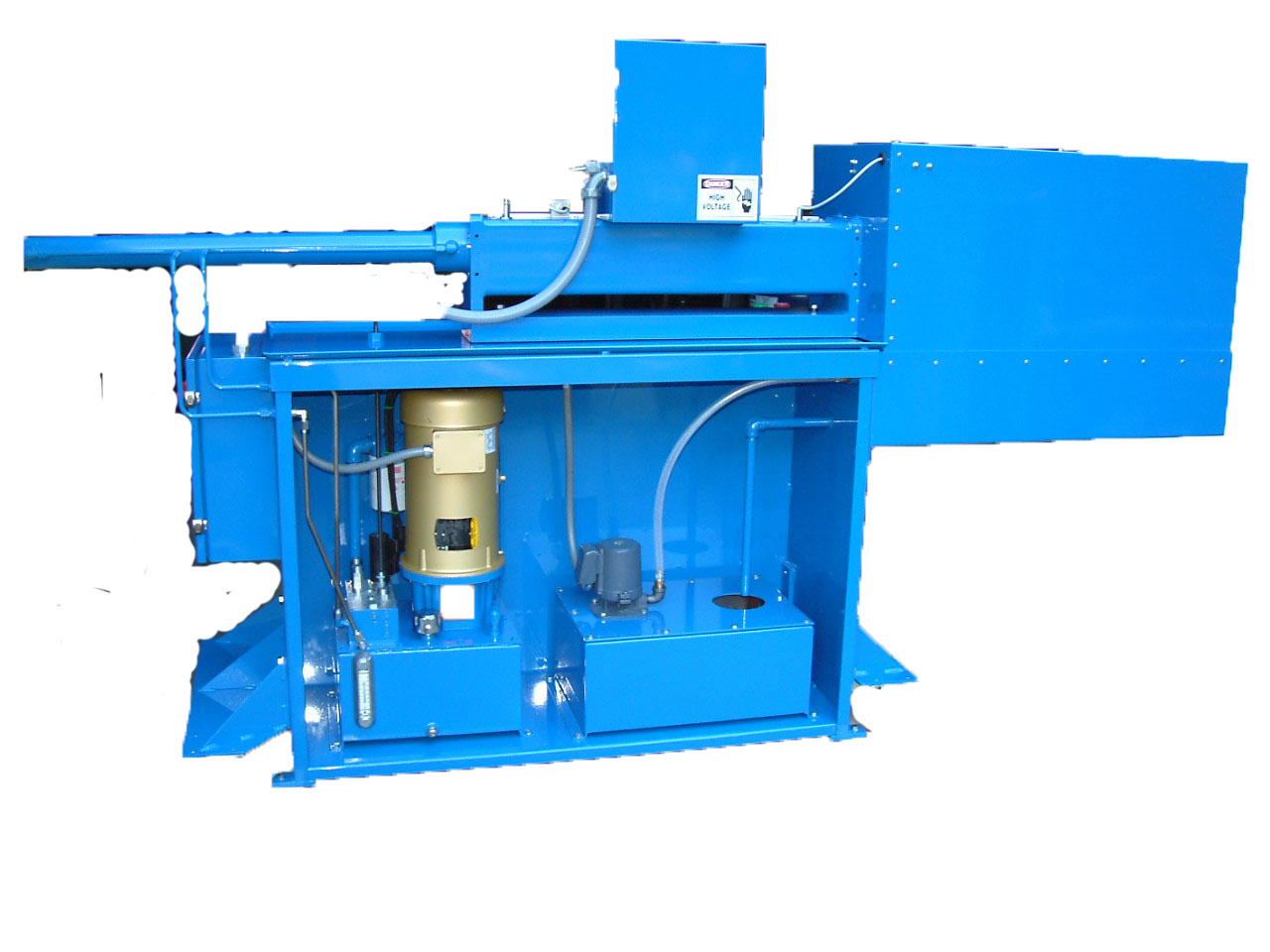

Model A Machine(back view)
